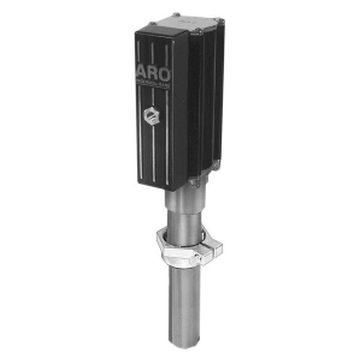

LM2305A-11-B 2" Oil Pump & Packages

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

<table>

<thead>

<tr>

<th>Lower Pump Material</th>

<th>Carbon Steel</th>

</tr>

</thead>

<tbody>

<tr>

<td>Air Motor Diameter</td>

<td>2”</td>

</tr>

<tr>

<td>Air Inlet Pressure Range psi (bar)</td>

<td>0-150 (0-10.3)</td>

</tr>

<tr>

<td>Fluid Pressure Range psi (bar)</td>

<td>0-450 (0-31)</td>

</tr>

<tr>

<td>Stroke Length</td>

<td>3”</td>

</tr>

<tr>

<td>Max.Recommended Cycles/Minute</td>

<td>125</td>

</tr>

<tr>

<td>Flow Rate gpm (lpm)</td>

<td>6 (22.7)</td>

</tr>

<tr>

<td>Cycles Per Gallon (Liter)</td>

<td>37 (9.8)</td>

</tr>

<tr>

<td>Air Inlet Size</td>

<td>1/4” (F)</td>

</tr>

<tr>

<td>Fluid Outlet Size</td>

<td>1/2” (F)</td>

</tr>

<tr>

<td>Fluid Inlet Size (stub)</td>

<td>3/4” (F)</td>

</tr>

<tr>

<td>Noise Level @ 100 psi – 124 cpm</td>

<td>80 db(A)</td>

</tr>

</tbody>

</table>

<table>

<thead>

<tr>

<th>Pump Model</th>

<th></th>

<th>Container Size gal (L)</th>

</tr>

</thead>

<tbody>

<tr>

<td>LM2203A-11-C</td>

<td>(-12-C = BSP Thread)</td>

<td>Stub</td>

</tr>

<tr>

<td>LM2203A-31-C</td>

<td>(-32-C = BSP Thread)</td>

<td>16 (60.6)</td>

</tr>

<tr>

<td>LM2203A-41-C</td>

<td>(-42-C = BSP Thread)</td>

<td>55 (208.2)</td>

</tr>

<tr>

<td>LM2203A-51-C</td>

<td>(-52-C = BSP Thread)</td>

<td>275 (1040.9)</td>

</tr>

</tbody>

</table>

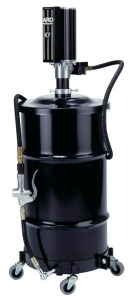

<table>

<thead>

<tr>

<th>Model </th>

<th>Size</th>

<th>Pump Model </th>

<th>Meter</th>

<th>Control Handle</th>

<th>Dolly</th>

<th>Drum Cover</th>

<th>hose</th>

<th>Follower Plate</th>

</tr>

</thead>

<tbody>

<tr>

<td>LP3001-1</td>

<td>35-lb (15.8 kg) </td>

<td>LM2350E-21-B</td>

<td>N/A</td>

<td>636103</td>

<td>N/A</td>

<td>94420</td>

<td>624201-10</td>

<td>640095-2-B</td>

</tr>

<tr>

<td>LP3002-1</td>

<td>120-lb (54.4 kg) </td>

<td>LM2350E-31-B</td>

<td>622201-3</td>

<td>N/A</td>

<td>N/A</td>

<td>94421</td>

<td>624401-4</td>

<td>640165</td>

</tr>

</tbody>

</table>

<table>

<thead>

<tr>

<th>Model</th>

<th>Description</th>

</tr>

</thead>

<tbody>

<tr>

<td>61113</td>

<td>Wall Mount Bracket</td>

</tr>

<tr>

<td>66073-1</td>

<td>Air Line Connection</td>

</tr>

<tr>

<td>67145-3-B (3:1 Ratio)</td>

<td>2” Bung Adapters</td>

</tr>

<tr>

<td>67145-4-B (5:1 Ratio)</td>

<td>2” Bung Adapters</td>

</tr>

<tr>

<td>637224</td>

<td>LM2203A Service Kit</td>

</tr>

<tr>

<td>637226</td>

<td>LM2305A Service Kit</td>

</tr>

</tbody>

</table>
