AF1045 Series 2-Ball Piston Pumps

  • 45:1 Ratio
  • 10" Air Motor
  • Max Flow: 6.27 GPM (23.7 l/min)
  • Max Fluid Pressure: 4,050 psi (279.3 bar)

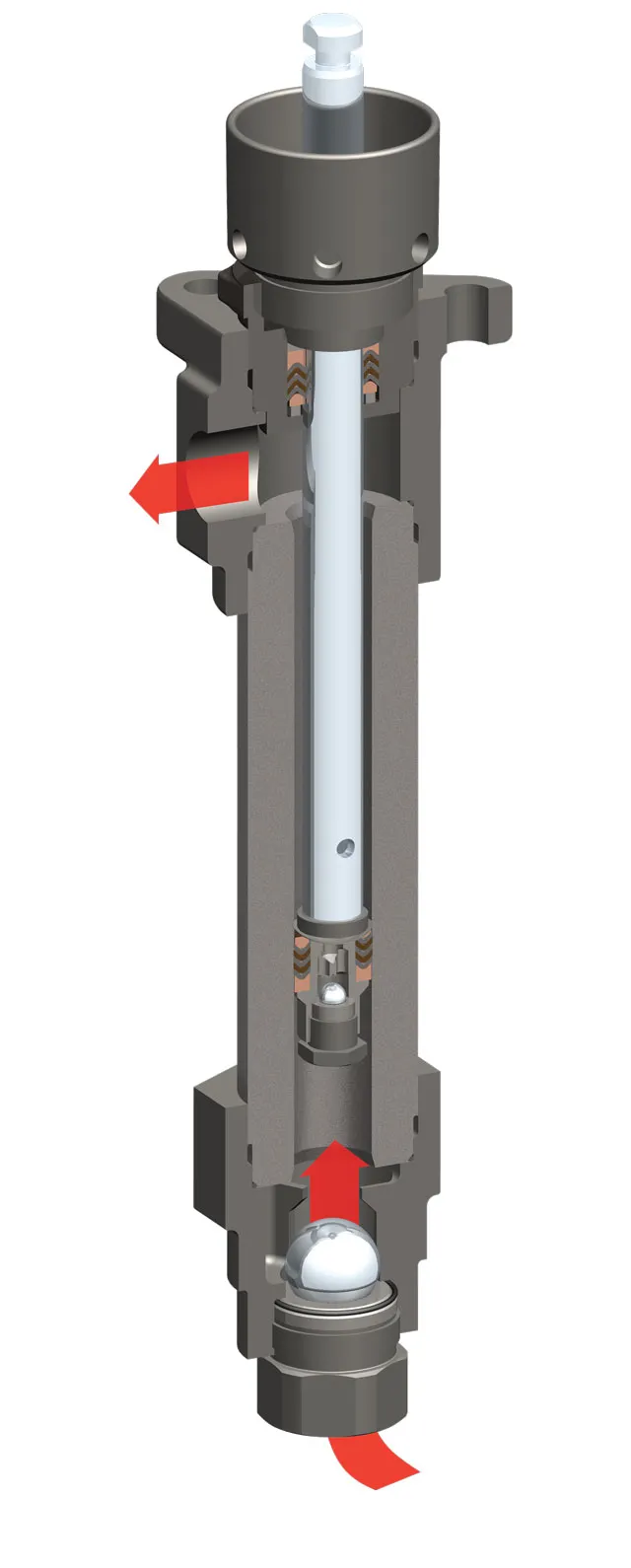

About the range of ARO 2-ball pneumatic piston Pumps: The most versatile piston pumps in the ARO line.

They are capable of handling applications from simple transfer to the extrusion of low to medium viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18 gpm (68.6 l/min).

Applications advantages of 2-balls:

  • Spray: 2-ball pumps deliver the constant flow rate andpressure needed for consistent and efficient coatingsapplications
  • Transfer & Supply: Depending on themodel, some 2-ball pumps can achieve flow rates up to 18.1 gpm,providing dependable results
  • Extrusion: 2-ball pumpsgenerate pressure to handle extrusion of low-tomedium-viscosity
  • Lubrication: ARO® 2-balls pumpsprovide the flow and pressure required for moving light oils andgrease lubricants
  • High Pressure Cleaning: ARO® WashPump Packages are portable and offer the the right option forindustrial cleaning applications


Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model**

Lower Pump Model Material

Plunger Material

Upper Packings

AF1045B11KK47

Carbon Steel Nickel Plated

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE

AF1045B11RK47

Carbon Steel Nickel Plated

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE/UHMW-PE (Staggered)

AF1045G11KK47

Carbon Steel Nickel Plated

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE

AF1045G11RK47

Carbon Steel Nickel Plated

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE/UHMW-PE (Staggered)

Ratio

45:1

Stroke

6” (15.24 cm)

Material Inlet

2” NPT(F)

Material Outlet

1” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

30 - 90 (2.1 - 6.2)

Fluid Pressure Range psi (bar)

1350 - 4050 (93.1 - 279.3)

Max Cycles/Minute

70

Displacement/Cycle cu in (cm3)

20.7 (339.2)

Cycles/gal (L)

11.2 (2.9)

Flow @ 60 Cycles gpm (L/min)

6.27 (23.7) (@70 Cycles)

Noise Level @ 60 psi dBA

89.8

Weight* lb (kg)

132 (59.9)

Container Suitability

Remote Mounting

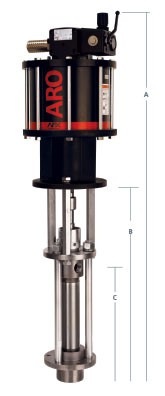

A* in (mm)

50.24 (1276.15)

B in (mm)

27.19 (690.58)

C in (mm)

16.06 (408.00)
