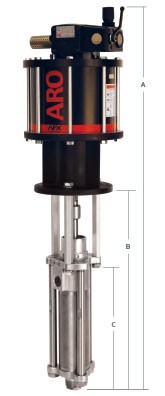

AF1015 Series 2-Ball Piston Pumps

  • 15:1 Ratio
  • 10" Air Motor
  • Max Flow: 18.1 GPM (68.6 l/min)
  • Max Fluid Pressure: 1,350 psi (93 bar)

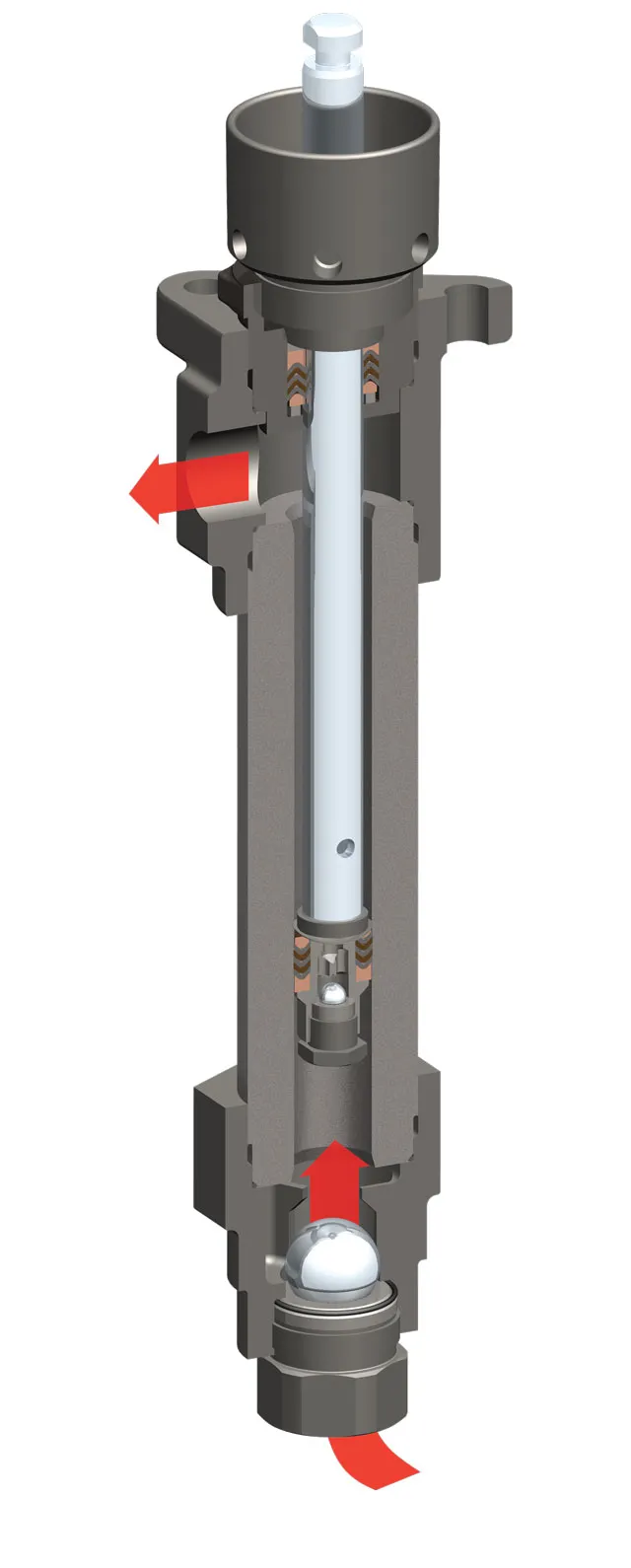

About the 2-Ball piston pump range of ARO:

The most versatile pumps in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low to medium viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18 gpm (68.6 l/min).

Applications advantages of 2-balls:

  • Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications
  • Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
  • Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity
  • Lubrication: ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
  • High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the the right option for industrial cleaning applications


Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model**

Lower Pump Material

Plunger Material

Upper Packings

AF1015C11FF35

300 Series / CF8M Stainless Steel

321 Stainless Steel w/Hard Chrome

UHMW-PE

AF1015C11GF35

300 Series / CF8M Stainless Steel

321 Stainless Steel w/Hard Chrome

UHMW-PE/Mineral Filled PTFE (Staggered)

AF1015J11FF36

400 Series SS w/Tungsten Carbide Seat

15-5 Stainless Steel w/Hard Chrome

UHMW-PE

AF1015F11FF36

400 Series Stainless Steel

15-5 Stainless Steel w/Hard Chrome

UHMW-PE

AF1015F11KK36

400 Series Stainless Steel

15-5 Stainless Steel

Mineral Filled PTFE

AF1015F11RK36

400 Series Stainless Steel

15-5 Stainless Steel

Mineral Filled PTFE/UHMW-PE (Staggered)

Ratio

15:1

Stroke

6” (15.24 cm)

Material Inlet

2” NPT(F)

Material Outlet

1-1/4” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

30 - 90 (2.1 - 6.2)

Fluid Pressure Range psi (bar)

450 - 1350 (31.0 - 93.1)

Max Cycles/Minute

70

Displacement/Cycle cu in (cm3)

59.8 (979.9)

Cycles/gal (L)

3.9 (1.0)

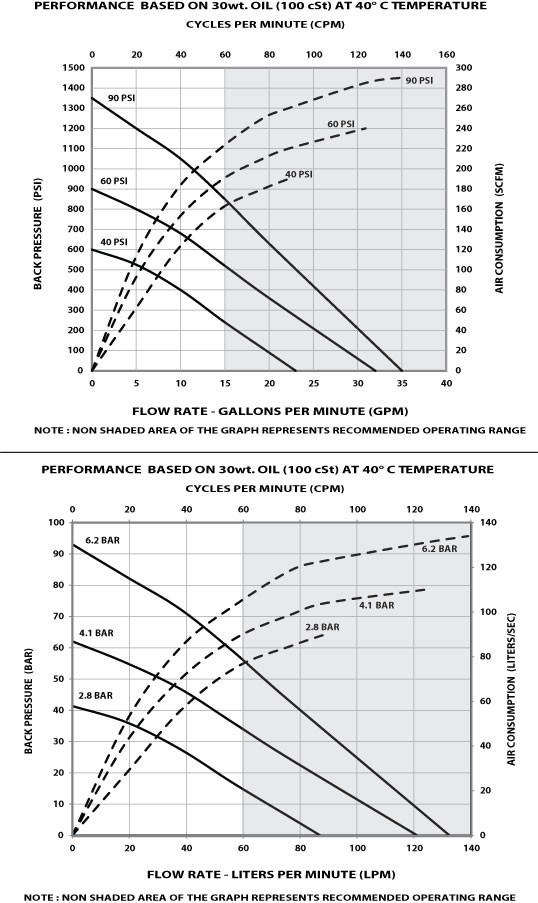

Flow @ 60 Cycles gpm (L/min)

18.1 (68.6) (@70 Cycles)

Noise Level @ 60 psi dBA

89.8

Weight* lb (kg)

125 (56.7)

Container Suitability

Remote Mounting

Pump Model**

Plunger Material

Upper Packings

Lower Packings

Lower Pump Model

Pump Service Kit

Lower Pump Material – 300 Series / CF8M Stainless Steel






AF1015C11FF35

321 Stainless Steelw/Hard Chrome

UHMW-PE

UHMW-PE

66942-C6F

637211-C63

AF1015C11GF35

321 Stainless Steelw/Hard Chrome

UHMW-PE/Mineral Filled PTFE (Staggered)

UHMW-PE

66942-P6F

637211-P63

Lower Pump Model Material – 400 Series SS w/Tungsten Carbide Seat






AF1015J11FF36

15-5 Stainless Steelw/Hard Chrome

UHMW-PE

UHMW-PE

66941-CDD

637211-C63

Lower Pump Model Material – 400 Series Stainless Steel






AF1015F11FF36

15-5 Stainless Steelw/Hard Chrome

UHMW-PE

UHMW-PE

66941-C6D

637211-C63

AF1015F11KK36

15-5 Stainless Steelw/Hard Chrome

Mineral Filled PTFE

Mineral Filled PTFE

66941-L6D

637211-L63

AF1015F11RK36

15-5 Stainless Steelw/Hard Chrome

Mineral Filled PTFE/UHMW-PE (Staggered)

Mineral Filled PTFE

66941-R6D

637211-R63
