AF0645 Series 2-Ball Piston Pumps

  • 45:1 Ratio
  • 6" Air Motor
  • Max Flow: 1.9 GPM (7.3 l/min)
  • Max Fluid Pressure: 5,459 psi (376.3 bar)

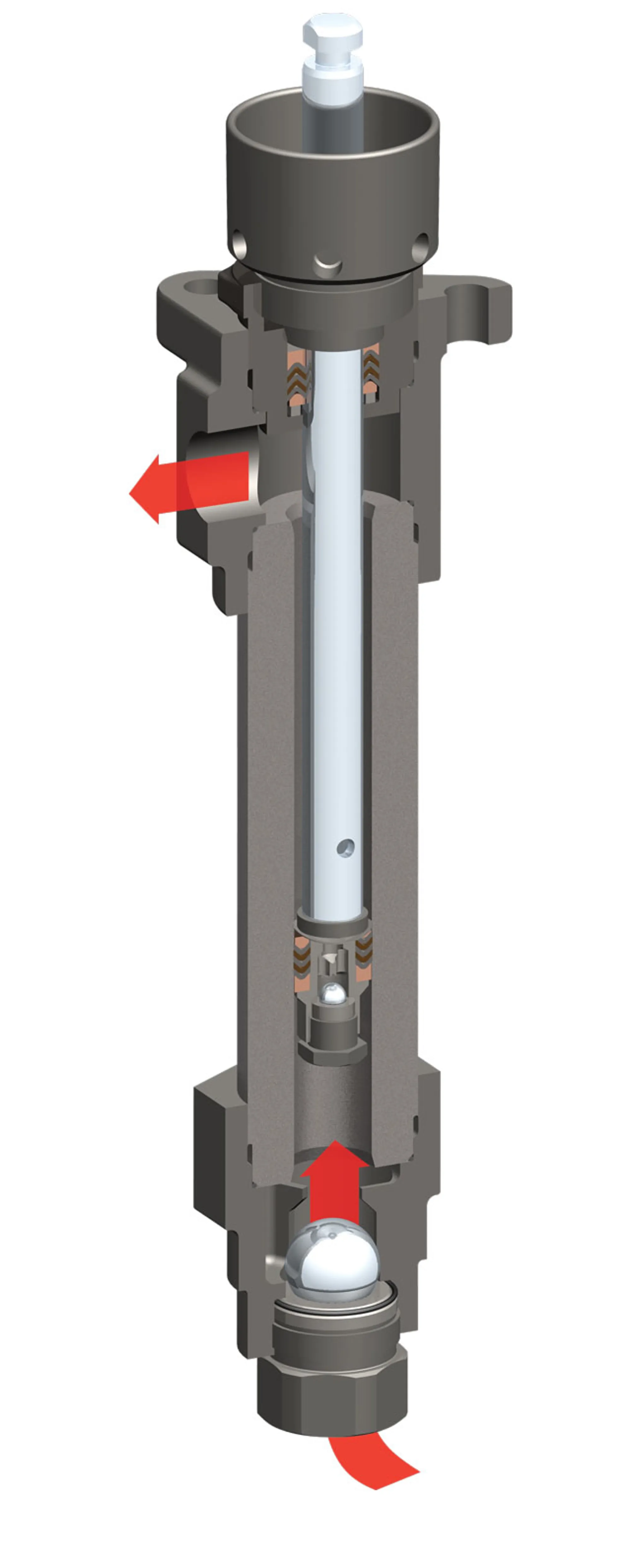

About the 2-ball piston pump range: The most versatile pumps in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low to medium viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18 gpm (68.6 l/min).

Simply Versatile


2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).

Applications advantages of 2-balls:

  • Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications
  • Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
  • Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity
  • Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
  • High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the right option for industrial cleaning applications

Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Ratio

45:1

Stroke

6” (15.24 cm)

Material Inlet

1” NPT(F)2” NPT(M)

Material Outlet

1” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

30 - 120 (2 - 8.3)

Fluid Pressure Range psi (bar)

1350 - 5459 (93 - 376)

Max Cycles/Minute

60

Displacement/Cycle cu in (cm3)

7.5 (122.9)

Cycles/gal (L)

31 (8.1)

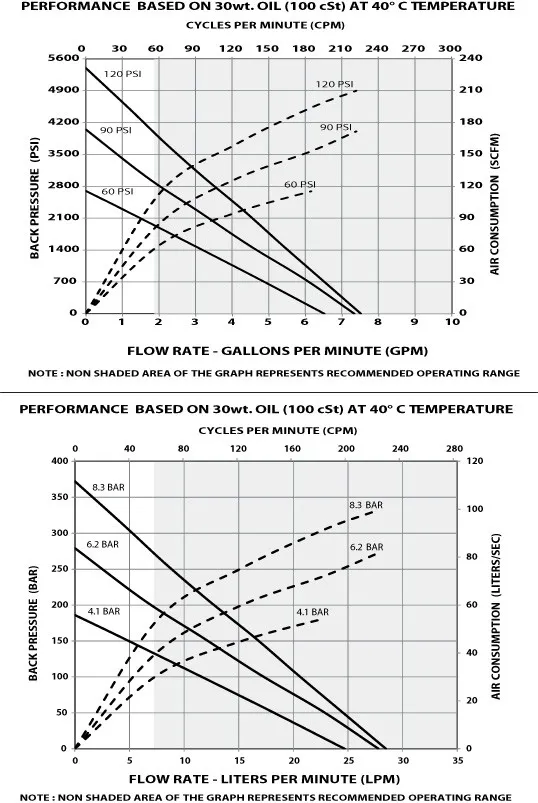

Flow @ 60 Cycles gpm (L/min)

1.9 (7.3)

Noise Level @ 60 psi dBA

84.7

Weight* lb (kg)

46.2 (21)

Container Suitability

Remote Mounting

CMX SeriesCart Mount5 Gallon

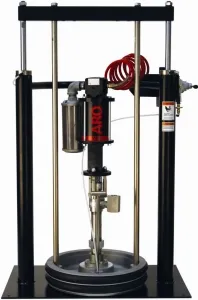

TPX SeriesTwo Post Ram55 Gallon

*Model No. *

*Package Type*

*Pump Model *

*Cart Model*

*Material Hose*

*Material Filter*

*Ball Valve Regulator*

CM0645G11GF47001

Cart Mount

AF0645G11GF47-1

67139

67140-1

651422-70

67442

*Model No. *

*Package Type*

*Pump Model *

*Ram Model*

*Follower *

*Follower Description*

*Material*

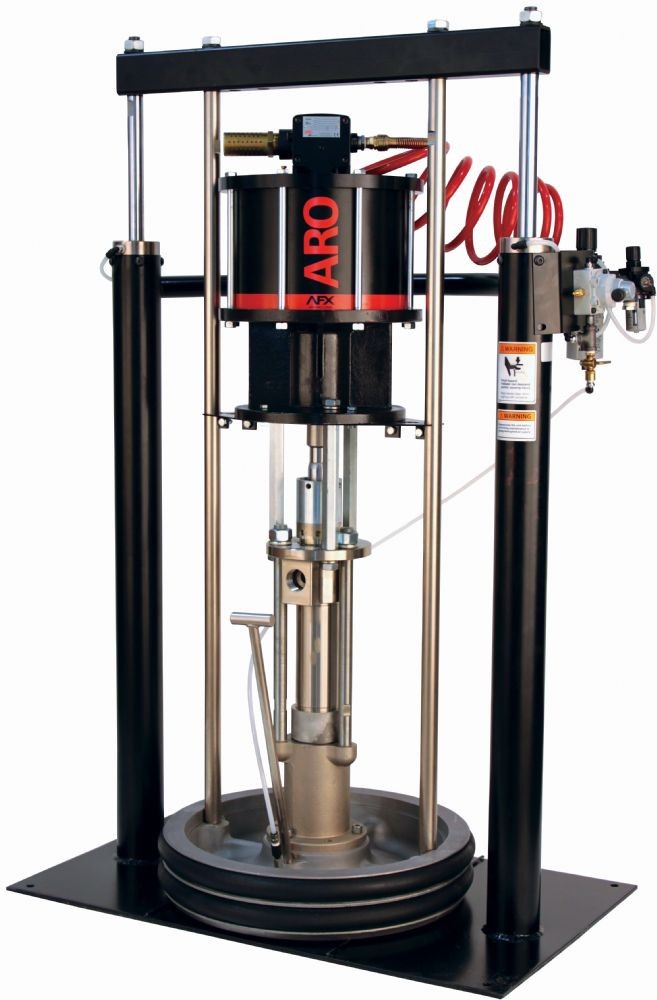

TP0645G51RK47TN2

55 Gallon Two Post Ram

AF0645G11RK47

RM552S-C

67195-6

Double Tube

EPR

TP0645G51RK47TB2

55 Gallon Two Post Ram

AF0645G11RK47

RM552S-C

66516-7

Double Lip

EPR

Recommended Accessories

Extrusion Guns

651500 For material over 200,000 cP 3/8” (F) inlet

651533 For low- to medium-viscosity fluids 1/4” NPS (M) inlet


Extrusion Gun Nozzle Kits

66541-6 Orifice .063” (1.63 mm), 66541-9 Orifice .093” (2.36 mm),

66541-2 Orifice .125” (3.17 mm)


Swivel

636085 Straight, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure

636088 Z-360°, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure

75364 Straight, for use with 651533 gun / 1/4”-18 NPTF to 1/4”-18 NPSM / 10,000 psi (690 bar) max working pressure


Material Filters

1” F (2) inlet 3/8” F (3) outlet / 6,000 psi (414 bar) max. / Carbon Steel

651418-40-B for 40 Mesh (375 Microns)

651418-70-B for 70 Mesh (200 Microns)


3/4” Fluid Pressure Regulators

651780-C1B-B Regulated 750 - 2,500 psi (52 - 173 bar) / 6,000 psi (414 bar) max. inlet / carbon steel

651780-C1C-B Regulated 2,000 – 5,000 psi (138 – 345 bar) / 6,000 psi (414 bar) max. inlet / carbon steel

651780-C3B-B Regulated 750 – 2,500 psi (52 – 173 bar) / 6,000 psi (414 bar) max. inlet / stainless steel

651780-C3R-B Regulated 750 – 5,000 psi (52 – 345 bar) / 6,000 psi (414 bar) max. inlet / stainless steel

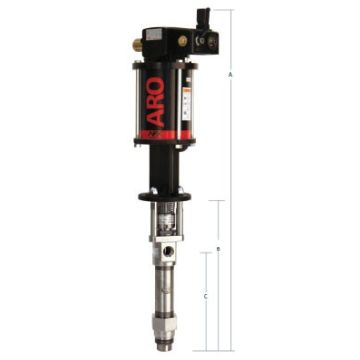

A* in (mm)

42.18 (1071.47)

B* in (mm)

18.91 (480.34)

C* in (mm)

12.66 (321.59)
