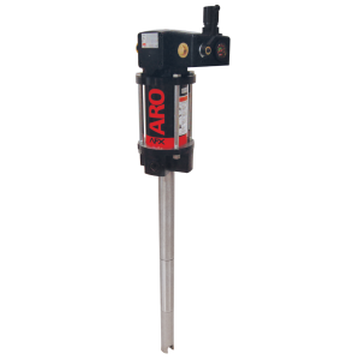

AF060BL 100:1 Grease Pumps & Packages

ARO^® lubrication pumps handle motor and gear oils,transmission fluid, and standard and industrial greases. Pumps areoffered from 3:1 to 100:1 ratios in order to meet the requirements ofany application - commercial vehicle servicing to lubricating heavymining equipment.

WARNING: These 100:1 pumps deliver pressures up to 10,000 psiand can only be used in permanently installed systems where the pumpis connected directly to piping with the proper rating for the application.

<table>

<thead>

<tr>

<th>Pump Model**</th>

<th>Lower Pump Material</th>

<th>Plunger Material</th>

<th>Upper Packings</th>

<th>Lower Packings</th>

<th>Lower Pump Model</th>

<th>Pump Service Kit</th>

</tr>

</thead>

<tbody>

<tr>

<td>AF0604M11FF48</td>

<td>300 Series/CF8M Stainless Steel</td>

<td>17-4 Stainlees Steel, Ceramic Coated</td>

<td>UHMW-PE</td>

<td>UHMW-PE</td>

<td>67200-C4B</td>

<td>637317-C4B</td>

</tr>

<tr>

<td>AF0604M11KS48</td>

<td>300 Series/CF8M Stainless Steel</td>

<td>17-4 Stainlees Steel, Ceramic Coated</td>

<td>Glass Filled PTFE</td>

<td>Virgin PTFE</td>

<td>67200-74B</td>

<td>637317-74B</td>

</tr>

</tbody>

</table>

<table>

<thead>

<tr>

<th>Ratio</th>

<th>11:1</th>

</tr>

</thead>

<tbody>

<tr>

<td>Stroke</td>

<td>4” (40.2 cm)</td>

</tr>

<tr>

<td>Material Outlet</td>

<td>1/2” NPT(F)</td>

</tr>

<tr>

<td>Air Inlet (female)</td>

<td>1/2” NPT(F)</td>

</tr>

<tr>

<td>Air Inlet Pressure Range psi (bar)</td>

<td>0 - 100 (0 - 6.9)</td>

</tr>

<tr>

<td>Fluid Pressure Range psi (bar)</td>

<td>0 - 10</td>

</tr>

<tr>

<td>Max Delivery/Minute @ 75 cycles</td>

<td>5.2 lbs (2.35 kg)</td>

</tr>

<tr>

<td>Noise Level @ 60 psi dBA</td>

<td>84.7</td>

</tr>

<tr>

<td>Material Inlet</td>

<td>Immersed</td>

</tr>

</tbody>

</table>

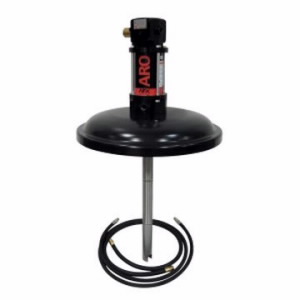

<table>

<thead>

<tr>

<th>Model No. *</th>

<th>*Package Type*</th>

<th>*Pump Model *</th>

<th>*Drum Cover*</th>

<th>*Bung Adapter*</th>

<th>*Ball Valve Regulator*</th>

<th>*Follower*</th>

</tr>

</thead>

<tbody>

<tr>

<td>DC060BL43PKL1C11*</td>

<td>16 Gallon Drum Cover</td>

<td>AF060BL43PKL1-1</td>

<td>66715</td>

<td>-</td>

<td>-</td>

<td>640152-1</td>

</tr>

<tr>

<td>DC060BL53PKL1C11*</td>

<td>55 Gallon Drum Cover</td>

<td>AF060BL53PKL1-1</td>

<td>71060-1</td>

<td>60870</td>

<td>-</td>

<td>640015-5</td>

</tr>

</tbody>

</table>
