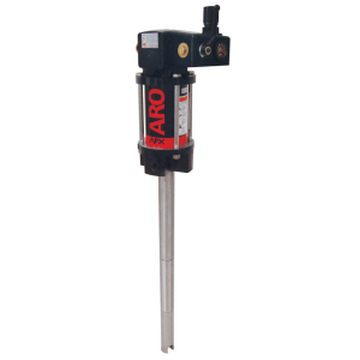

AF0475L 75:1 Grease Pumps & Packages

ARO lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

<table>

<thead>

<tr>

<th>Pump Model**</th>

<th>Container Suitability</th>

<th>Plunger Material</th>

<th>Upper Packings</th>

<th>Lower Packings</th>

<th>Lower Pump Model</th>

<th>Packaging Service Kit</th>

</tr>

</thead>

<tbody>

<tr>

<td>AF0475L43PBL1</td>

<td>16 GAL / 120 LB Drum</td>

<td>Carbon Steel</td>

<td>Polyurethane</td>

<td>Buna “N”</td>

<td>-</td>

<td>637512.0</td>

</tr>

<tr>

<td>AF0450L53PKL1</td>

<td>55 GAL / 400 LB Drum</td>

<td>Carbon Steel</td>

<td>Polyurethane</td>

<td>Buna “N”</td>

<td>-</td>

<td>637512.0</td>

</tr>

</tbody>

</table>

<table>

<thead>

<tr>

<th>Ratio</th>

<th>75:1</th>

</tr>

</thead>

<tbody>

<tr>

<td>Stroke</td>

<td>6” (15.2 cm)</td>

</tr>

<tr>

<td>Material Outlet</td>

<td>1/2” -14 NPT</td>

</tr>

<tr>

<td>Air Inlet (female)</td>

<td>1/2” -14 NPT</td>

</tr>

<tr>

<td>Air Inlet Pressure Range psi (bar)</td>

<td>0-100 (0-6.9)</td>

</tr>

<tr>

<td>Fluid Pressure Range psi (bar)</td>

<td>0 - 7500 (0 - 517)</td>

</tr>

<tr>

<td>Max Delivery/Minute @ 75 cycles</td>

<td>5.5 lbs/min (2.5 kg)</td>

</tr>

<tr>

<td>Noise Level @ 60 psi dBA</td>

<td>81.8</td>

</tr>

<tr>

<td>Material Inlet</td>

<td>Immersed</td>

</tr>

</tbody>

</table>

<table>

<thead>

<tr>

<th>Model No.</th>

<th>Package Type</th>

<th>Pump Model</th>

<th>Drum Cover</th>

<th>Bung Adapter</th>

<th>Ball Valve Regulator</th>

<th>Follower</th>

</tr>

</thead>

<tbody>

<tr>

<td>DC0475L53PBL1C11</td>

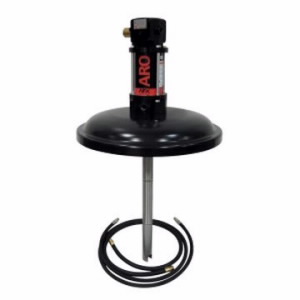

<td>55 Gallon Drum Cover</td>

<td>AF0475L53PBL1</td>

<td>71060-1</td>

<td>4148</td>

<td>67442</td>

<td>640015-2</td>

</tr>

<tr>

<td>DM0475L53PBL1C11</td>

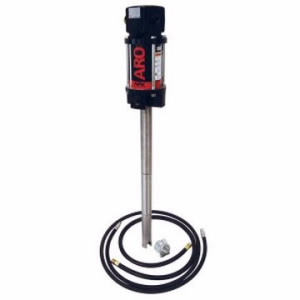

<td>55 Gallon Drum Mount</td>

<td>AF0475L53PBL1</td>

<td>-</td>

<td>4148</td>

<td>67442</td>

<td>640015-2</td>

</tr>

</tbody>

</table>
