AF0411 Series 2-Ball Piston Pumps

  • 11:1 Ratio
  • Max Flow: 3.7 GPM (14 l/min)
  • Max Fluid Pressure: 1,747 psi (120 bar)

Simply Versatile

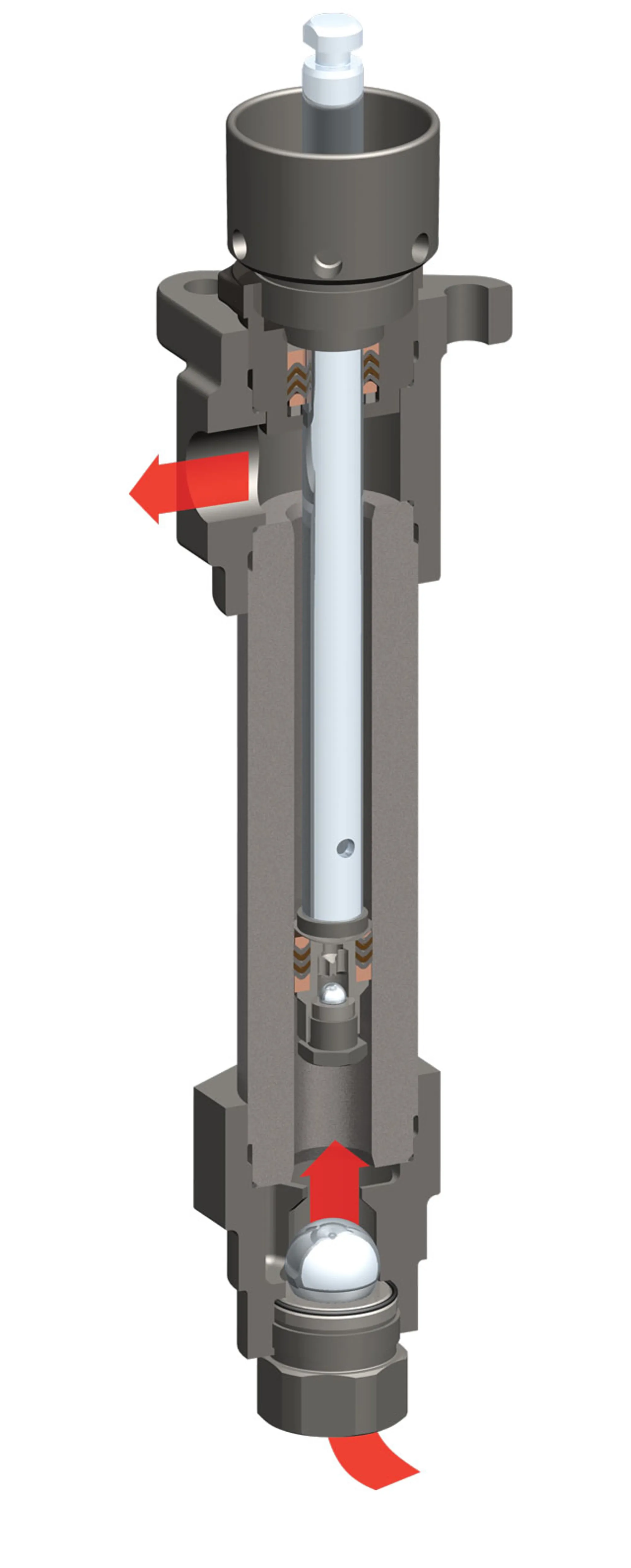

2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to18.1 gpm (68.6 L/min).


Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coating applications

Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results

Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity

Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants

High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the right option for industrial cleaning applications


Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model**

Lower Pump Material

Plunger Material

Upper Packings

Lower Packings

Lower Pump Model

Pump Service Kit

AF0411G11FF47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

UHMW-PE

UHMW-PE

66300-C43

637305-C43

AF0411G11KK47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

Glass Filled PTFE

Glass Filled PTFE

66300-343

637305-343

AF0411G11KK48

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

Glass Filled PTFE

Glass Filled PTFE

66300-34B

637305-343

AF0411G11HH47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

UHMW-PE/Leather (Staggered)

UHMW-PE/Leather (Staggered)

66300-G43

637305-G43

AF0411G11GF47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

UHMW-PE/Glass Filled PTFE (Staggered)

UHMW-PE

66300-P43

637305-P43

AF0411G11RK47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

Glass Filled PTFE/UHMW-PE (Staggered)

Glass Filled PTFE

66300-R43

637305-R43

AF0411G11FF48

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless w/Hard Chrome

UHMW-PE

UHMW-PE

66300-C4B

637305-C43

Ratio

11:1

Stroke

6” (15.24 cm)

Material Inlet

1” NPT(F) 2” NPT(M)

Material Outlet

1” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

30 - 150 (2 - 10.3)

Fluid Pressure Range psi (bar)

330 - 1747 (23 - 120)

Max Cycles/Minute

60.0

Displacement/Cycle cu in (cm3)

14.5 (237.6)

Cycles/gal (L)

15.9 (4.2)

Flow @ 60 Cycles gpm (L/min)

3.7 (14.0)

Noise Level @ 60 psi dBA

86.5

Weight* lb (kg)

42.9 (19.5)

Container Suitability

Remote Mounting

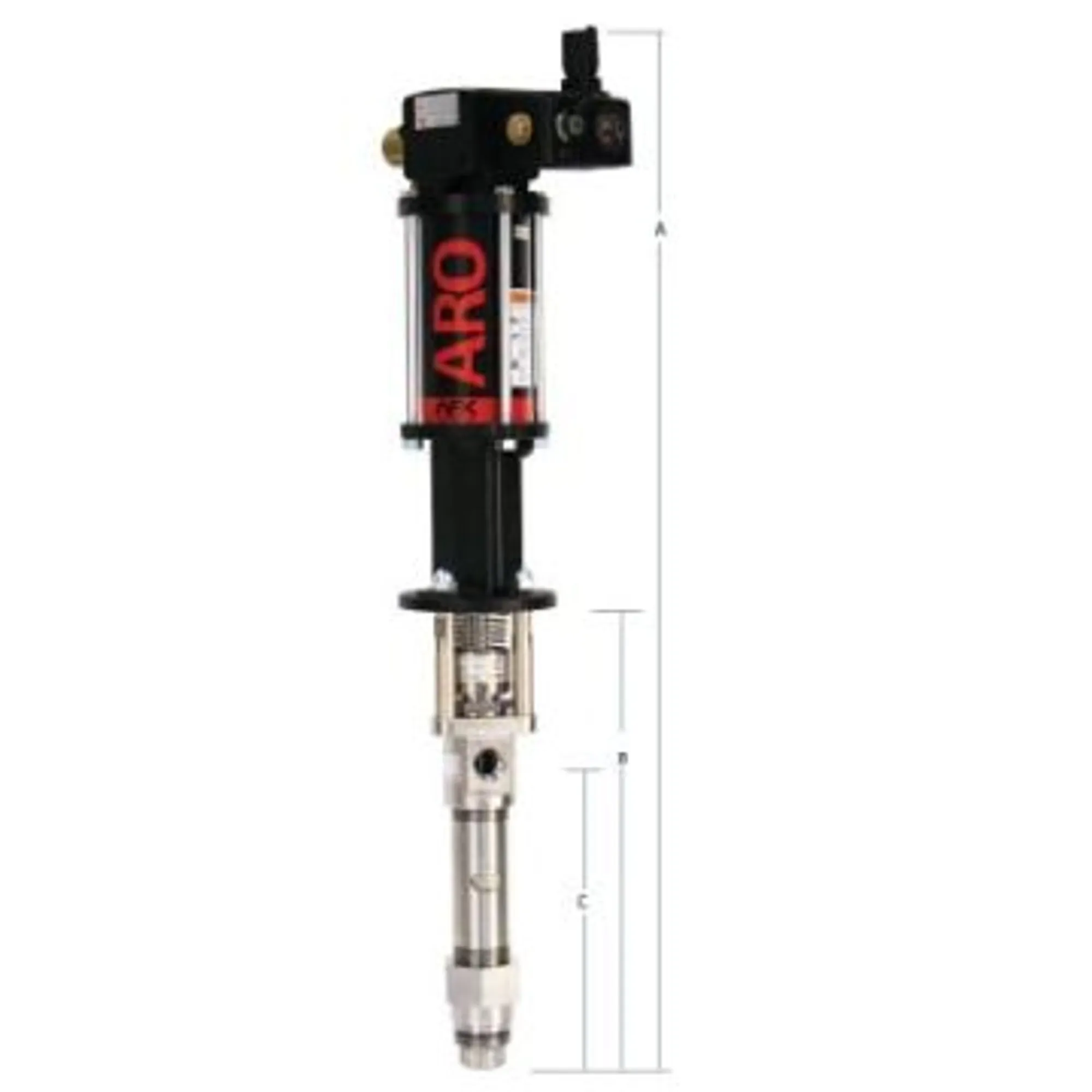

A* in (mm)

42.18 (1071.47)

B in (mm)

18.91 (480.34)

C in (mm)

12.66 (321.59)
