650110-C 2-Ball Piston Pump & Packages

  • 2:1 Ratio
  • Max Flow: 2.0 GPM (7.5 LPM)
  • Fluid Pressure: 0-300 PSI (0-20.7 bar)

Simply Versatile

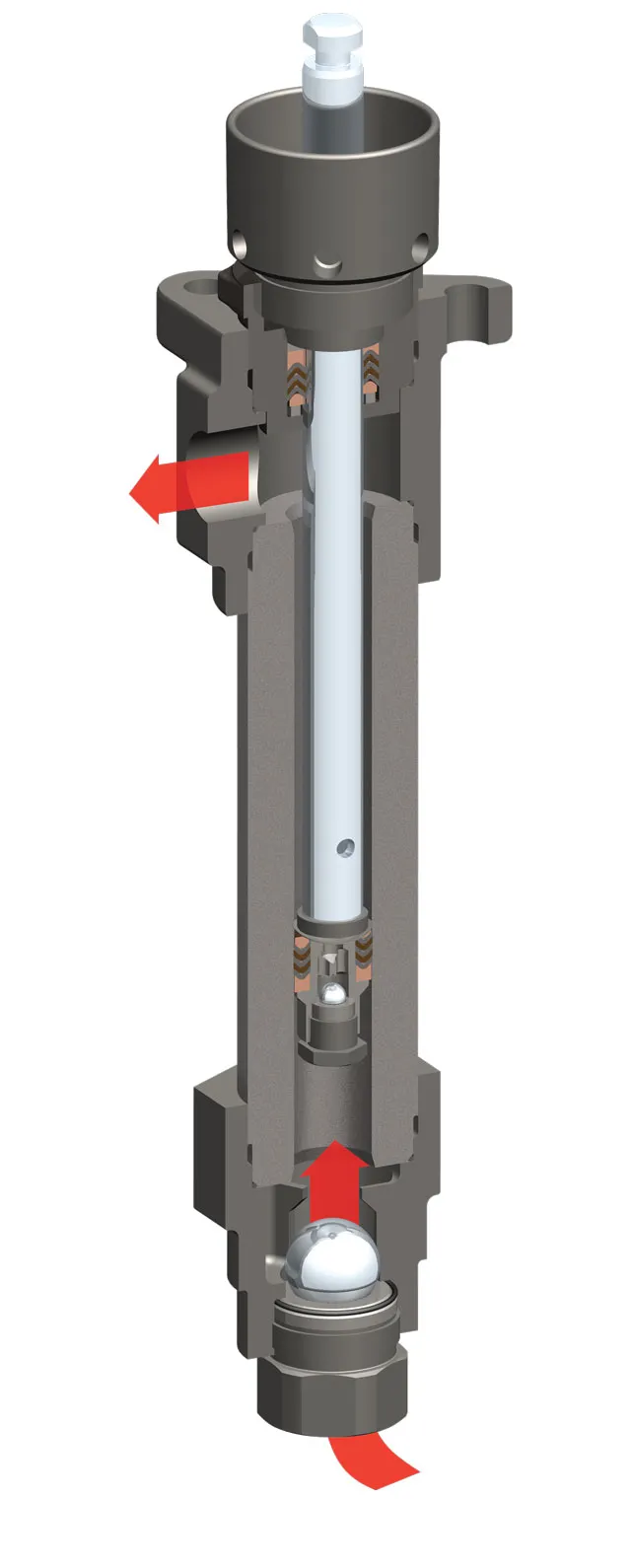

2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).


Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications

Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results

Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity

Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants

High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the the right option for industrial cleaning applications.

Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model

Lower Pump Material

Plunger Material

Upper Packings

Lower Packings

Pump Service Kit*

650110-C

Carbon Steel

Carbon Steel

UHMW-PE

UHMW-PE

637028.0

650110-1C

Carbon Steel

Carbon Steel

PTFE

PTFE

637029.0

Ratio

2:1

Stroke

6”

Material Inlet

Immersed

Material Outlet

650110-C 1/2” NPT(F)650110-1C 1/4” NPT(F)

Air Inlet (female)

1/4” NPT(F)

Air Inlet Pressure Range psi (bar)

0 – 150 (0 – 10.3)

Fluid Pressure Range psi (bar)

0 – 300 (0 – 20.7)

Max Cycles/Minute

120.0

Displacement/Cycle cu in (cm3)

8.0 (131.0)

Cycles/gal (L)

28.9 (7.6)

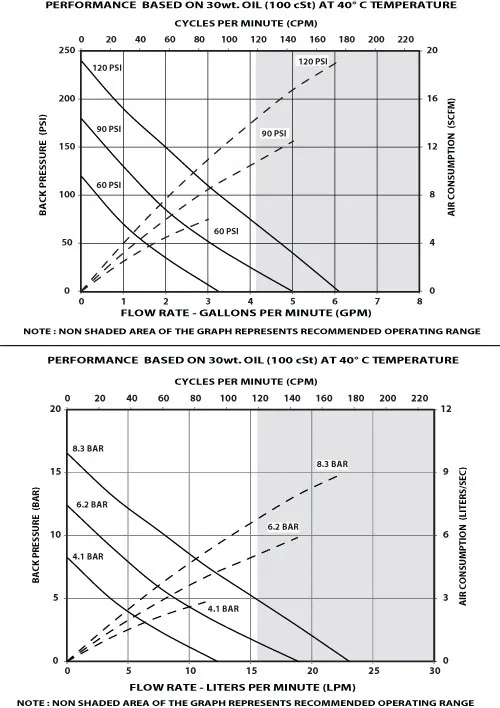

Flow @ 60 Cycles gpm (L/min)

2.0 (7.5)

Noise Level @ 60 psi dBA

81.0

Weight* lb (kg)

12 (5.4)
