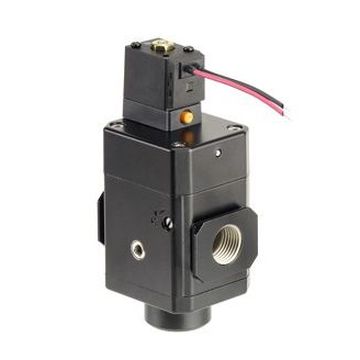

Overview & Features
Features
- Prevents air surge on machine start-up by allowing pressure to build gradually
- Modular construction
- Utilize modular clamp spacers to connect to other components
- Threaded and be connected directly to piping
- 2 year warranty
Technical Data
- Operating Pressure: 44-130 psi (3-9 bar)
- Gauge Port: 1/8'' NPT
- Manual Override: Locking
- Voltage Allowance: -15% - 10%
- Consumption (AC) Inrush: 5.6VA (50 Hz), 5.0VA (60 Hz)
- Consumption (AC) Holding: 3.3VA (50 Hz), 2.3VA (60 Hz)
- Consumption (DC): 1.8W / 2W (with lamp)
- Connection: Din
- Effective Orifice Size: P->A = .098 sq. in. (63 mm2) A->R = .068 sq. in. (44 mm2)
Technical Data
- Operating Pressure: 44-130 psi (3-9 bar)
- Gauge Port: 1/8'' NPT
- Manual Override: Locking
- Voltage Allowance: -15% - 10%
- Consumption (AC) Inrush: 5.6VA (50 Hz), 5.0VA (60 Hz)
- Consumption (AC) Holding: 3.3VA (50 Hz), 2.3VA (60 Hz)
- Consumption (DC): 1.8W / 2W (with lamp)
- Connection: Din
- Effective Orifice Size: P->A = .098 sq. in. (63 mm2) A->R = .068 sq. in. (44 mm2)
