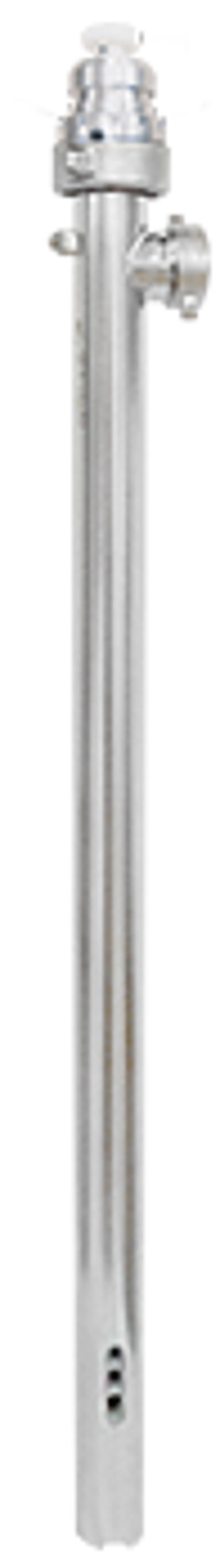

Pumps Tubes: Stainless Steel, 316L

Clean, Durable, and Explosion-Safe

ARO’s stainless steel pump tubes are built for environments where hygiene, durability, and explosion protection are critical. These pump tubes are ideal for flammable or sensitive fluids and are available in ATEX-certified configurations (coming soon). Their modular design ensures quick cleaning, easy maintenance, and seamless adaptability across a wide range of applications.

Sealing Type: Seal-less, Mechanical Seal (coming soon)

Impeller Options: Axial Impeller, Radial Impeller, Screw Impeller

Driveshaft: Stainless Steel

Immersion Depth: 700mm, 1000mm, 1200mm

Key Benefits:

  • Robust & Hygienic: High-quality stainless steel resists corrosion and abrasion.
  • Flexible & Modular: Easily adapts to various media and setups.
  • Versatile Media Handling: Ideal for acids, alkalis, solvents, oils, paints, cosmetics, and food related media.

Pump Series Options:

  • A-Series: Axial impeller for maximum flow rate.
  • R-Series: Radial impeller for higher discharge pressure.
  • S-Series: Screw impeller for medium-viscosity media (up to 1,000 mPas).

Applications:

Food & beverage, pharmaceuticals, cosmetics, and hazardous chemical handling.

All pump units are compatible with our full motor range and feature a quick-connect bayonet lock for fast setup and changeover.

Sealing Type

Seal-less, Mechanical (coming soon)

Impeller

Axial Impeller

Radial Impeller

Screw Impeller

Flowrate max.

(w/ 850 Watt Motor)

140 l/min

110 l/min

90 l/min

Recommended Viscosity max.

(w/ 850 Watt Motor)

800 mPas

700 mPas

800 mPas

Head Pressure max.

(w/ 850 Watt Motor)

10 mwc

22 mwc

13 mwc

Discharge connection

Male BSP 1 1/4''

Tube (outer diameter)

40 mm

Immersion Depth

(Available Tube Lengths)

700 mm

1000 mm

1200 mm

Weight

3 kg

Coupling

Curved Teeth Coupling

Mixing Function

No

ATEX

Coming soon

Pump Foot/Check Valve Option

No

Yes

No

PP Barrel Adapter

Included
