ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

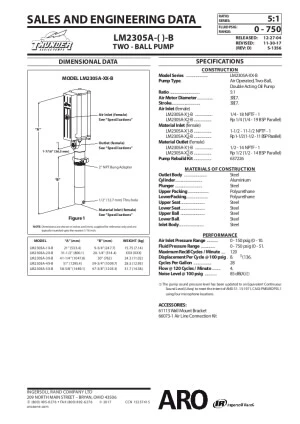

LM2305A-11-B 2" Oil Pump & Packages
Specifications
| Lower Pump Material | Carbon Steel |
|---|---|
| Air Motor Diameter | 2” |
| Air Inlet Pressure Range psi (bar) | 0-150 (0-10.3) |
| Fluid Pressure Range psi (bar) | 0-450 (0-31) |
| Stroke Length | 3” |
| Max.Recommended Cycles/Minute | 125 |
| Flow Rate gpm (lpm) | 6 (22.7) |
| Cycles Per Gallon (Liter) | 37 (9.8) |
| Air Inlet Size | 1/4” (F) |
| Fluid Outlet Size | 1/2” (F) |
| Fluid Inlet Size (stub) | 3/4” (F) |
| Noise Level @ 100 psi – 124 cpm | 80 db(A) |
Available Models
| Pump Model | Container Size gal (L) | |
|---|---|---|
| LM2203A-11-C | (-12-C = BSP Thread) | Stub |
| LM2203A-31-C | (-32-C = BSP Thread) | 16 (60.6) |
| LM2203A-41-C | (-42-C = BSP Thread) | 55 (208.2) |
| LM2203A-51-C | (-52-C = BSP Thread) | 275 (1040.9) |
| Model | Size | Pump Model | Meter | Control Handle | Dolly | Drum Cover | hose | Follower Plate |
|---|---|---|---|---|---|---|---|---|
| LP3001-1 | 35-lb (15.8 kg) | LM2350E-21-B | N/A | 636103 | N/A | 94420 | 624201-10 | 640095-2-B |
| LP3002-1 | 120-lb (54.4 kg) | LM2350E-31-B | 622201-3 | N/A | N/A | 94421 | 624401-4 | 640165 |
| Model | Description |
|---|---|
| 61113 | Wall Mount Bracket |
| 66073-1 | Air Line Connection |
| 67145-3-B (3:1 Ratio) | 2” Bung Adapters |
| 67145-4-B (5:1 Ratio) | 2” Bung Adapters |
| 637224 | LM2203A Service Kit |
| 637226 | LM2305A Service Kit |
