How Pneumatic Powder Pumps Work?

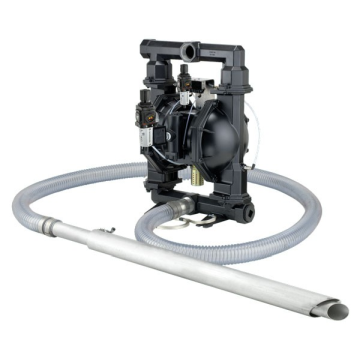

 What Is a Pneumatic Powder Pump?

A pneumatic powder pump uses compressed air to transfer dry powders safely and efficiently. ARO powder pumps handle powders with densities up to 721 kg/m³ (45 lb/ft³), including:

• Carbon black
• Expanded mica
• Silicones
• Acrylic resins
• 3D printing powders
• Pharma ingredients

Key Specifications:

• Pump Ratio: 1:1
• Sizes: Available in 2'' and 3'' options
• Maximum Particle Sizes:
• • 6.4 mm (0.25 in) for 2'' pumps
  • 9.5 mm (0.37 in) for 3'' pumps
• Maximum Pressure: 6.9 bar (100 psi)
• Materials: Aluminum or stainless steel

Weight:

• 2'' Aluminum Pump: 41.5 kg (91.5 lbs)
• 3'' Aluminum Pump: 62.4 kg (137.5 lbs)
• 2'' Stainless Steel Pump: 71.6 kg (157.8 lbs)
• 3'' Stainless Steel Pump: 107.4 kg (236.8 lbs)

How Do Pneumatic Powder Pumps Work?

ARO powder pumps operate through a simple yet effective process:

1. Fluidization: Compressed air fluidizes the powder, making it easier to move.
2. Suction and Discharge: The pump’s diaphragms move back and forth, creating alternating suction and discharge cycles. This action draws the fluidized powder into the chamber and pushes it out through the discharge port.
3. Patented Air-Induction System: This unique system prevents powder pack-out and optimizes powder aeration for consistent flow.
4. Built-in Delay Timer: Ensures proper fluidization before start-up, reducing downtime.
5. 4-Way Air-Efficiency Valve: Minimizes air consumption, reducing costs and energy use.

Additional Features or ARO powder pumps are:

• Main Air Control Valve: Directly controlled by the delay timer for precise start-up.
• Stall-Free Air Valve: Ensures continuous, reliable operation without interruptions.

How to Install a Pneumatic Powder Pump?

ARO powder pumps are designed for easy and flexible installation:

• Portable Design: Can be moved between sites or mounted on existing equipment.
• Air Supply: Ensure a stable and filtered compressed air source for optimal performance.
• Secure Connections: Properly connect the air supply and powder intake to prevent leaks and ensure smooth operation.

Included Components:

• Air Filter/Regulator: Maintains clean and regulated air supply for consistent performance.
• Flexible installation in harsh environments, including in hazardous duty areas (ATEX).

Powder Pump Startup & Troubleshooting:

Applications of Pneumatic Powder Pumps in Industry

ARO powder pumps excel in various industrial applications, including:

1. Chemical Processing:

Efficient transfer of resins, silicones, and powdered chemicals without flying dust.
Example: Automated transfer of acrylic resins into mixing tanks, improving safety and reducing waste.

2. Pharmaceuticals:

Accurate and hygienic handling of active ingredients.
Example: Safe transfer of pharmaceutical powders to maintain product purity and prevent cross-contamination.

3. Plastics and Coatings:

Handle challenging materials like carbon black or expanded mica.
Example: Efficiently transferring silica for UV ink formulations, reducing waste and improving productivity.

4. General Industrial Use:

Ideal for hazardous or explosive environments.
Example: Transferring fumed silica with ATEX-certified equipment for enhanced worker safety.

Why Choose ARO Pneumatic Powder Pumps?

ARO pneumatic powder pumps offer numerous advantages for industries handling dry powders:

• High Performance: Efficiently transfers powders up to 721 kg/m³ (45 lb/ft³) with consistent flow and reduced downtime.
• Patented Technology: Features a unique air-induction system and a 4-way air-efficiency valve, preventing powder pack-out and reducing air consumption.
• Built-in Delay Timer: Ensures optimal powder fluidization before start-up, enhancing reliability.
• Safety First: ATEX-certified for use in hazardous environments, ensuring compliance and worker protection.
• Portability: Easy to move between sites or integrate into existing systems without extensive modifications.
• Expert Support Network: ARO’s global network of distributors provides localized expertise, installation support, and maintenance services.
• Custom Solutions: Tailored systems available, including skid-mounted configurations for specialized applications.
• Proven Reliability: Tested with over 1,000 different powders, ensuring dependable performance across diverse industries.

Testimonial

"Since we started using the ARO powder pumps in our production line, our efficiency has skyrocketed! The pumps handle even the most challenging dry materials with ease and reliability, which has significantly reduced our maintenance costs. The consistent, high-quality performance has kept our operations running smoothly, and the quick serviceability has minimized any downtime!"

— Mark Reynolds, Production Manager

ARO Powder Pump Features & Benefits:
