Simply Versatile
The heavy-hitters of the line, ARO® chop-check pumps are designed to move medium-to high- viscosity fluids ranging from 15,000 cPs to more than 1,000,000 cPs, and at delivery rates up to 12.2 gpm (46.3 L/min).
Reach out to us
AF0646 Series
AF0423 Series Chop Check Piston Pumps
23:1 Ratio
Max Flow: 1.8 GPM (6.81 l/min)
Max Fluid Pressure: 3,690 psi (25,4 bar)
Lower pump material available in carbon steel or stainless steel
AF0665 Series Chop Check Piston Pumps
65:1 Ratio
6" Air Motor
Max Flow: 1.3 GPM (5.1 l/min)
Max Fluid: 7,475 psi (515.4 bar)
AF0844 Series Chop Check Piston Pump
44:1 Ratio
8" Air Motor
Max Flow: 3.8 GPM (14.3 l/min)
Max Fluid Pressure: 5,964 psi (411.2 bar)
Lower pump material available in carbon steel or stainless steel
650934-X43-C Chop Check Piston Pump
2:1 Ratio
Max Flow: 2.7 GPM (10.2 LPM)
Fluid Pressure: 100 - 2400 PSI (6.9 - 165.5 bar)
AF0443 Series Chop Check Piston Pumps
43:1 Ratio
Max Flow: 0.74 GPM (2.8 l/min)
Max Fluid Pressure: 6,549 psi (451.6 bar)
About the Chop-check Piston Pump range of ARO: The heavy-hitters of the line, ARO chop-check pumps are designed to move medium to high viscosity fluids ranging from 15,000 to more than 1,000,000 cPs, and at delivery rates up to 46.3 l/min (12 gpm).
AF1265S Series
65:1 Ratio
12" Air Motor
Max Flow: 6 GPM (22.9 LPM)
Max Fluid Pressure: 5,850 psi
AF1230 Series
30:1 Ratio
12" Air Motor
Max Flow: 12.2 GPM (46.3 l/min)
Max Fluid Pressure: 3,250 psi (224 bar)
650941-XXE-C Chop-Check Piston Pump
1.2:1 Ratio
Max Flow: 8.7 gpm (33.1 LPM)
Fliud Pressure: 60-2670 PSI (4.1 - 184.1 bar)
NM2322E F Series Chop Check
22:1 Ratio
3" Air Motor
0.99 GPM (3.7 LPM) Max Flow
Max Fluid: 3,300 psi
AF0623S Series Chop Check Piston Pump
23:1 Ratio
Max Flow: 3.2 GPM (12.3 LPM)
Max Fluid Pressure: 4,215 psi
Lower pump material available in carbon steel or stainless steel
AF0813 Series Chop Check Piston Pump
13:1 Ratio
8" Air Motor
Max Flow: 12.2 GPM (46.3 LPM)
Max Fluid Pressure: 1,900 psi
AF0412 Series Chop Check Piston Pumps
12:1 Ratio
Max Flow: 3.2 GPM (12.3 LPM)
Max Fluid Pressure: 2,085 psi (143.8 bar)
Lower pump material available in carbon steel or stainless steel
AF1044 Series Chop Check Piston Pump
44:1 Ratio
10" Air Motor
Max Flow: 6 GPM (22.9 l/min)
Max Fluid Pressure: 3,960 psi (273 bar)
About the Chop-check pneumatic piston pump range of ARO:
The heavy-hitters of the line, ARO chop-check pumps are designed to move medium to high viscosity fluids ranging from 15,000 to more than 1,000,000 cPs, and at delivery rates up to 46.3 l/min (12 gpm).
AF1020 Series Chop Check Piston Pump
20:1 Ratio
10" Air Motor
Max Flow: 10.5 GPM (39.7 l/min)
Max Fluid Pressure: 2,250 psi (155.2 bar)
About the Chop-check pneumatic piston pump range of ARO:
The heavy-hitters of the line, ARO chop-check pumps are designed to move medium to high viscosity fluids ranging from 15,000 to more than 1,000,000 cPs, and at delivery rates up to 12 gpm (46.3 l/min).
AF0828S Series Chop Check Piston Pump
28:1 Ratio
8" Air Motor
Max Flow: 6 GPM (22.7 l/min)
Max Fluid Pressure: 3,360 psi (231.6 bar)
650935-X43-C Chop-Check Piston Pump
3.6:1 Ratio
Max Flow: 1.5 GPM (5.7 LPM)
Fluid Pressure: 165 - 3960 PSI (11.4 - 273.1 bar )
Applications advantages of Chop-Check:
- Extrusion: Chop-Check pumps are workhorses - able to deliver viscous adhesives, sealants, caulking and heavy lubricants to the application point at the desired pressure and flow rate.
- Transfer & Supply: Depending on the model, some Chop-Check pumps are capable of achieving flow rates up to 12.2 gpm, ensuring efficient transfer of heavy greases, inks and other viscous materials.
Materials advantages of Chop-Checks:

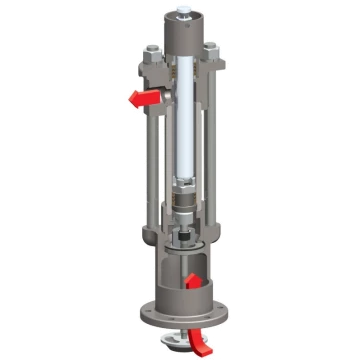

Chop-Check pumps have a primer piston to ‘feed’ material into the pump. They are often used in conjunction with a follower plate to force material down. This prevents loss of prime due to Channeling - a condition where the pump inlet becomes surrounded by air due to the cavity formed when a high viscosity material does not level off when removed (Slumpability).
- Stringy materials: Chop-Checks have mechanical, flat checks to over come materials that resist cut-off and adhereto themselves.
- Tacky materials: Chop-Check pump options come in high ratios to generate the fluid pressure needed to move materials that will adhere to hoses and equipment while wet.
