Simply Versatile

2-ball pumps are among the most versatile in the ARO® line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluiddelivery up to 18.1 gpm (68.6 L/min).

ARO-En-Product-Photo-af0409ax3

AF0409AX3 SERIES

ARO-En-Product-Photo-af0409ax3

AF0409AX3 SERIES

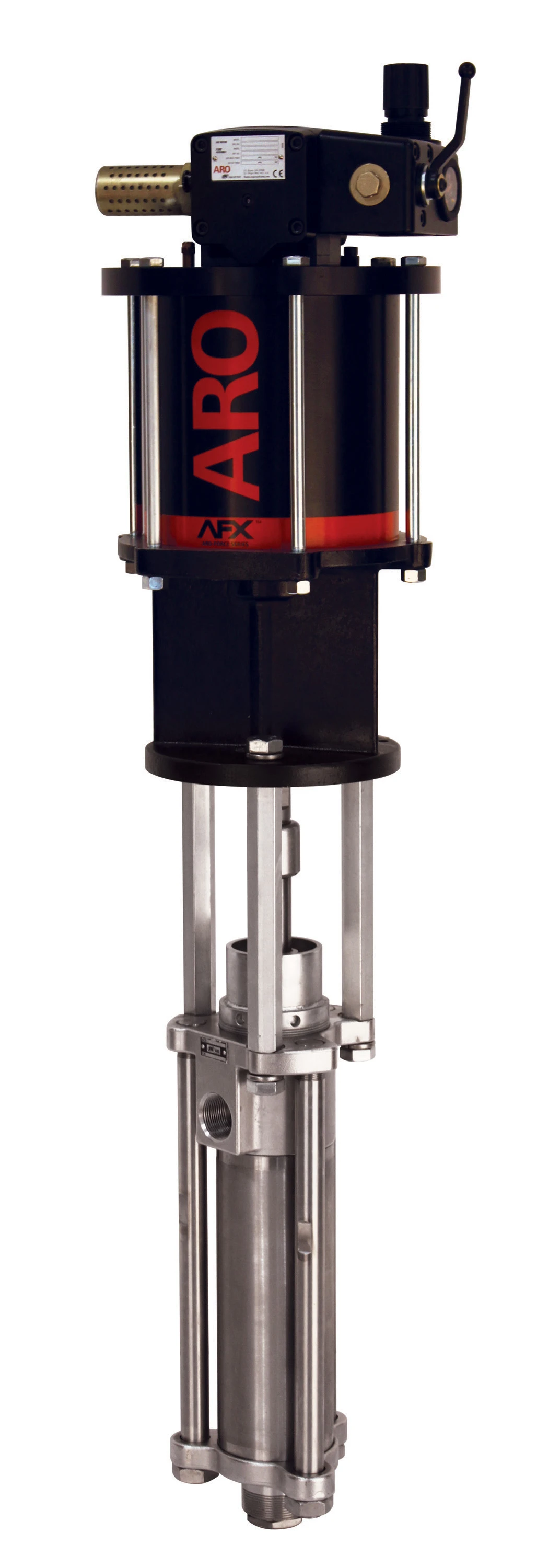

ARO-En-Product-Photo-af0810

AF0810 Series 2-Ball Piston Pumps

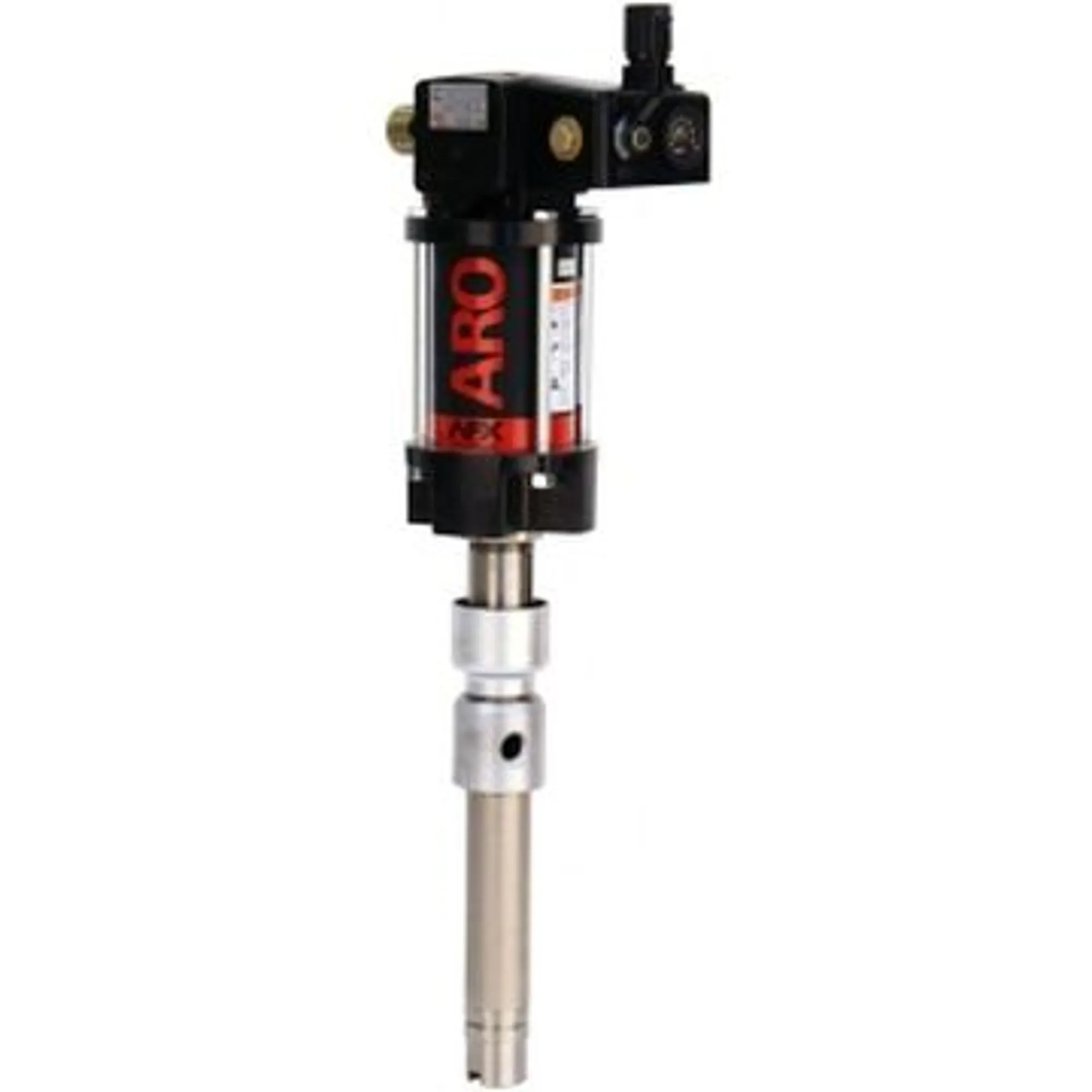

AF0409A Series 2-Ball Piston Pumps

9:1 Ratio Max Flow: 2.8 GPM (10.5 LPM) Max Fluid Pressure: 1,350 psi

AF0409C Series 2-Ball Piston Pump

9:1 Ratio Max Flow: 2.8 GPM (10.5 LPM) Max Fluid Pressure: 1,350 psi

NM2304X-X1-X11 N Series

4:1 Ratio 3'' Air Motor Max Flow: 2.1 GPM (8 LPM) Max Fluid Pressure: 600 psi (41.4 bar) About the 2-Ball piston pump range of ARO: The most versatile pumps in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low to medium viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18 gpm (68.6 l/min).

AF0422 2-Ball Piston Pump & Packages

22:1 Ratio Max Flow: 1.9 GPM (7.2 LPM) Max Fluid Pressure: 3,412 psi (235.3 bar)

AF0660 Series 2-Ball Piston Pumps

60:1 Ratio Max Flow: 1.4 GPM (5.4 l/min) Max Fluid: 6,000 psi (413.7 bar)

61204X-X 2-Ball Piston Pump & Packages

1:1 Ratio 2" Air Motor 18 GPM (68.1 LPM) Max Flow Max Fluid: 150 psi

650110-C 2-Ball Piston Pump & Packages

2:1 Ratio Max Flow: 2.0 GPM (7.5 LPM) Fluid Pressure: 0-300 PSI (0-20.7 bar)

AF1223X5 UV/EB Series 2-Ball Pump

23:1 Ratio 12" Air Motor Max Flow: 18.1 GPM (68.6 LPM) Max Fluid Pressure: 2,070 psi (142.7 bar)

AF0430 Series 2-Ball Piston Pumps

30:1 Ratio Max Flow: 1.3 GPM (4.9 l/min)

AF0623G Series 2-Ball Piston Pumps

23:1 Ratio Max Flow: 3.8 GPM (14.3 LPM) Max Fluid Pressure: 3,495 psi

AF1045 Series 2-Ball Piston Pumps

45:1 Ratio 10" Air Motor Max Flow: 6.27 GPM (23.7 l/min) Max Fluid Pressure: 4,050 psi (279.3 bar)

AF1223X1 Series 2-Ball Piston Pump

23:1 Ratio 12" Air Motor Max Flow: 18.1 GPM (68.6 l/min) Max Fluid Pressure: 2,070 psi (142.7 bar)

650940-XXD-B 2-Ball Pump Piston Pump

0.8:1 Ratio Max Flow: 12.9 GPM (48.8 LPM) Fluid Pressure: 40 - 1,600 psi (2.8 - 110.3 bar)

NM2202X-X1-X31

2:1 Ratio 2'' Air Motor Max Flow: 2.15 GPM (8.14 LPM) Max Fluid Pressure: 351 psi

AF0828B Series 2-Ball Piston Pump

28:1 Ratio 8" Air Motor Max Flow: 6.27 GPM (23.7 LPM) Max Fluid Pressure: 3,360 psi (231.6 bar)

AF1015 Series 2-Ball Piston Pumps

15:1 Ratio 10" Air Motor Max Flow: 18.1 GPM (68.6 l/min) Max Fluid Pressure: 1,350 psi (93 bar)

AF0645 Series 2-Ball Piston Pumps

45:1 Ratio 6" Air Motor Max Flow: 1.9 GPM (7.3 l/min) Max Fluid Pressure: 5,459 psi (376.3 bar)

AF0840 Series 2-Ball Piston Pump

40:1 Ratio 8'' Air Motor Max Flow: 3.7 GPM (14 l/min) Max Fluid Pressure: 4,967 psi (342.5 bar)

NM2318B-13-X43 N Series

18:1 Ratio 3" Air Motor Max Flow: 0.61 GPM (2.3 LPM) Max Fluid Pressure: 2,700 psi

65031X-X N Series 2-Ball Piston Pump

2:1 Ratio Max Flow: 4.2 GPM (16.1 LPM) Fluid Pressure: 0 - 600 PSI (0 - 41.4 bar)

650943-X4X-B 2-Ball Piston Pump

0.58:1 Ratio Max Flow: 3.1 GPM (11.9 LPM) Fluid Pressure: 85 - 2054 PSI (5.9 - 140.7 bar)

AF1265B Series

65:1 Ratio 12" Air Motor Max Flow: 6.27 GPM (23.7 l/min) Max Fluid Pressure: 5,850 psi (403.3 bar)

NM2328A-11-X11 N Series

28:1 Ratio 3" Air Motor 0.38 GPM (1.4 LPM) Max Flow Max Fluid: 4,200 psi

AF0411 Series 2-Ball Piston Pumps

11:1 Ratio Max Flow: 3.7 GPM (14 l/min) Max Fluid Pressure: 1,747 psi (120 bar)

650939-X4D-B 2-Ball Pump Piston Pump

2.4:1 Ratio Max Flow: 4.4 GPM (16.7 LPM) Fluid Pressure: 120 - 4800 psi (8.3 - 331.0 bar)

650944-XXX-B 2-Ball Piston Pump

3.3:1 Ratio Max Flow: 1.6 GPM (6.1 LPM) Fluid Pressure: 165 - 3960 psi (11.4 - 273.1 bar)

Applications advantages of 2-balls:

  • Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications
  • Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
  • Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity
  • Lubrication:  ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
  • High Pressure Cleaning: ARO® Wash Pump Packages are portable and offer the the right option for industrial cleaning applications



Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even
    stronger defense against highly abrasive fluids like paint and glass-filled sealer
